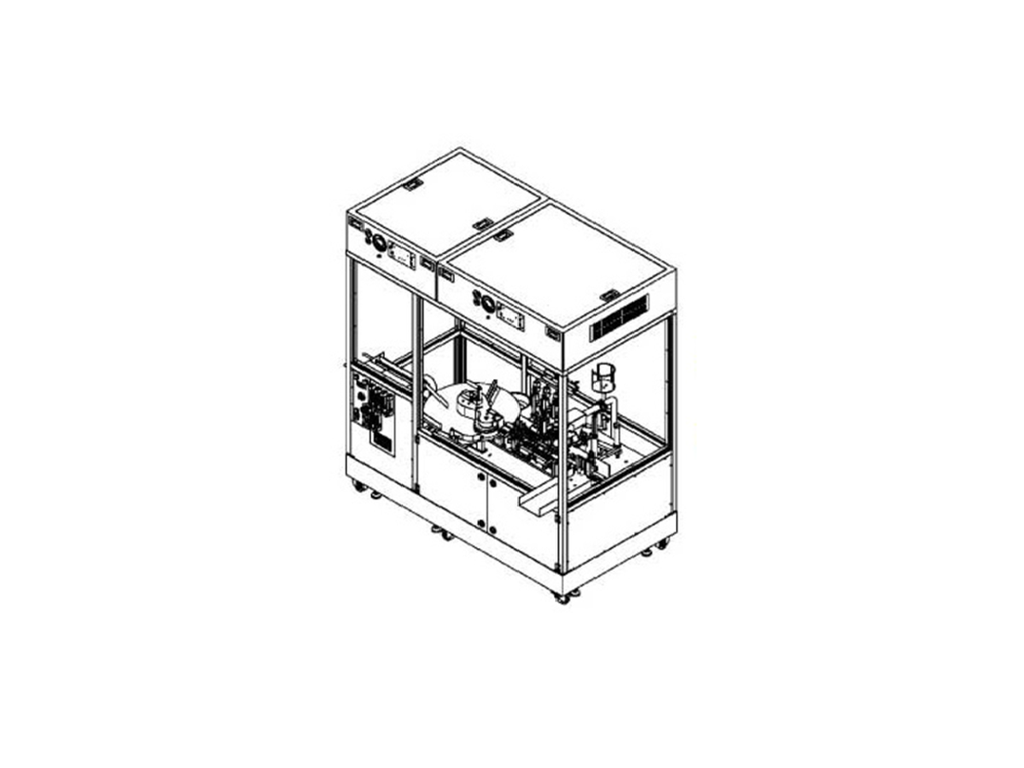

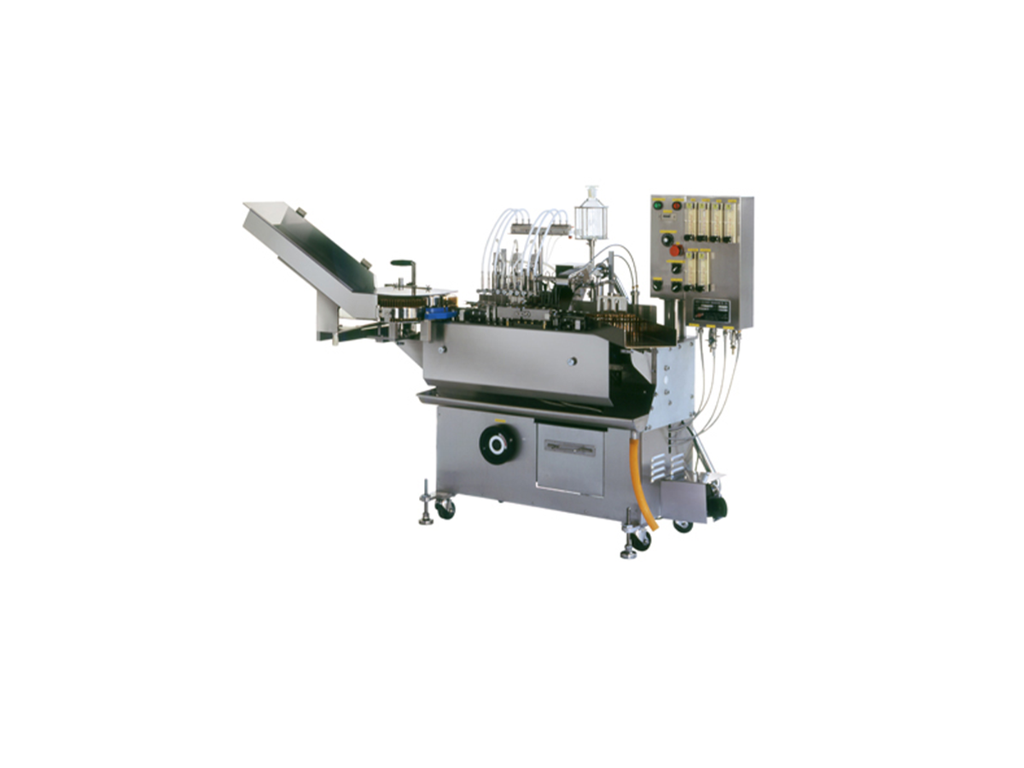

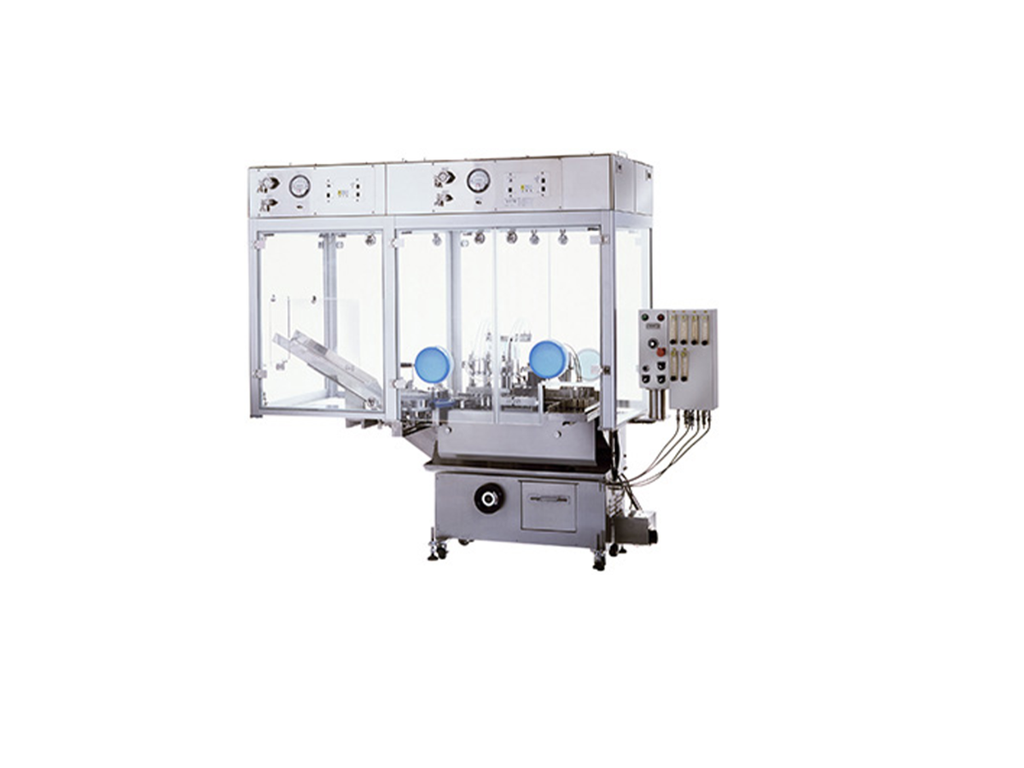

Automatic Ampoule Filling & Sealing Machine
AFS-5 & AFS-20
Features:
- Fine and solidly constructed for clean and trouble free long term operations; All stainless steel contact and cover surfaces, all lubrication and service points in lower compartment, complying cGMP regulations.
- Fine-Setting fill pumps ensure most accurate liquid dosings; All liquid passage parts can be easily disassembled for thorough cleaning and sterilization.
- No-Ampoule-No-Fill safety device for individual ampoules avoids liquid loss & spillage.
- Variable fill speed and individual flame nozzle controls guarantee fine and sure seals.
- Both pre-and post-filling of N2 are possible.
| Model | Capacity |
Dimension |
|
|
AFS-5
|
1-2 ml
| 5,000-6,000 pcs./hr. | No Cover |
|
AFS-5
| 5 ml | 4,000-5,000 pcs./hr. | L 2050 x W 1000 x H 1350 (mm) |
|
AFS-20 |
10 ml
|
3,500-4,000 pcs./hr.
| Full Cover (Non-down-to-ground) L 2440 x W 1090 x H 2125 (mm) |
|
AFS-20 |
20 ml
|
3,000-3,600 pcs./hr.
| Full Cover (Down-to-ground) L 2080 x W 1200 x H 2178 (mm) |
