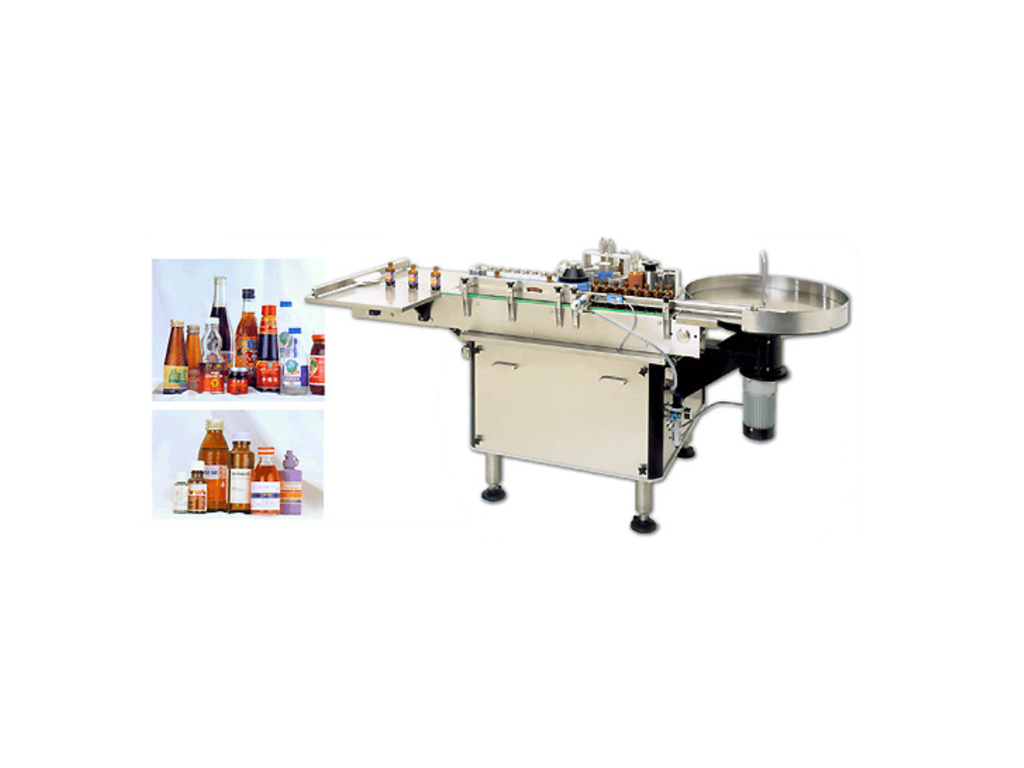

Automatic Labeling Machine
Jih Cheng

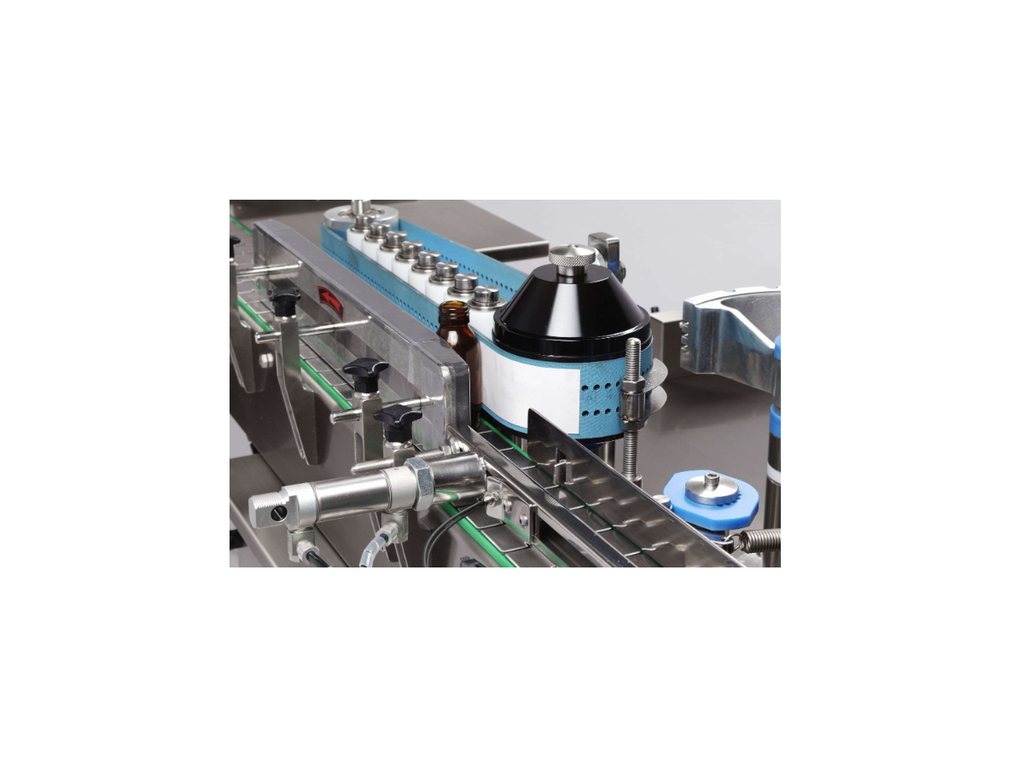

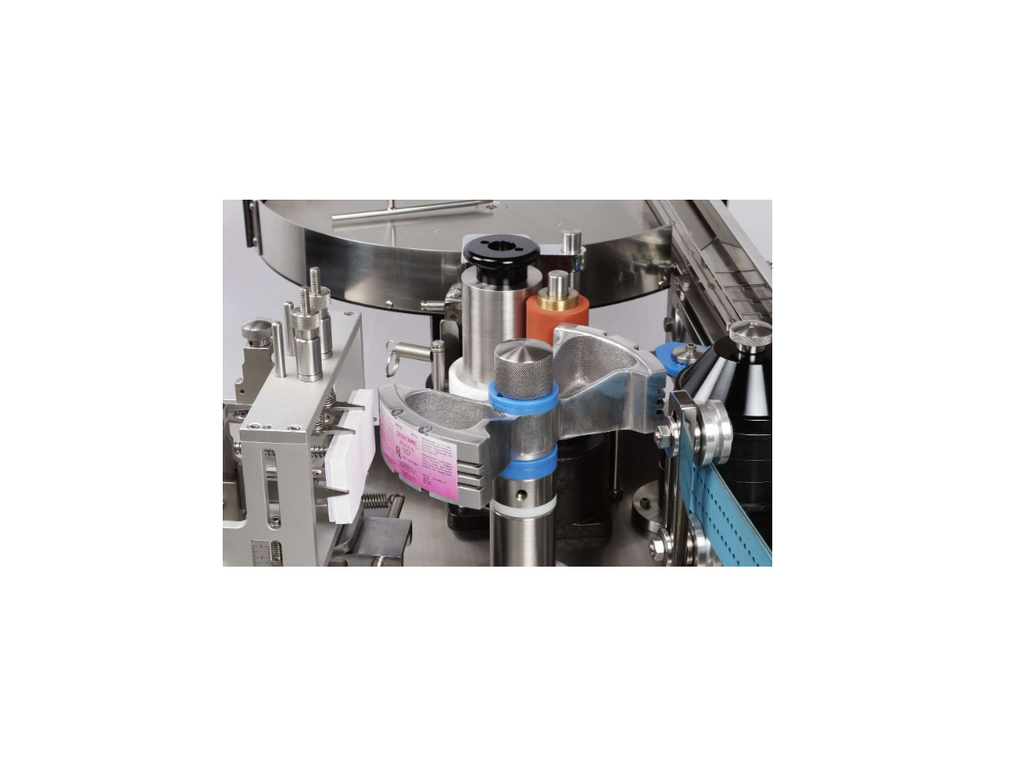

The machine delivers label, gummed with resinous glue, from turret to vacuum belt and from belt to the bottle surface. It is possible to quickly exchange different bottle and label sizes with ease. It is simple in operation, neat, easy to clean up and suitable for round container labeling applications in industries, such as chemical, pharmaceutical, food, winery, etc.
Features:
- All mechanically operated design with all transmission mechanism in enclosed oil-bath thus ensures smooth running, quite, low load and trouble free operations.
- Conveyer and machine top surface made of stainless steel for durability and ease in cleaning.
- Suitable for independent operation, also possible for connection with line operation.
- Compact, and easily movable with casters.
Technical Data
| Specification | ||||
| Model No. | JC-M | JC-MM | JC-L | JC-LL |
| Bottle Die
| 16-70mm
| 30-100 mm
| ||
| Label size | 20-80 mm(H) x 50-100 mm(L) | 40-180 mm(H) x 50-300 mm(L) | 40-180 mm(H) x 50-110 mm(L) | |
| Speed | 40-80 bpm | 80-140 bpm | 50-100 bpm | 80-140 bpm |
| Power source (VAC) | 220V / 380V / 440V 50Hz / 60Hz sing phase / 3 phase | |||
|
Power consumption | 0.8 kw | 1.0 kw | 1.0 kw | 1.0 kw |
| Air consumption
| 4-6 kgs x 18 Liter | |||
| Type of paste | resin | |||
| Machine weight | 550 kg | 600 kg | 5550 kg | 600 kg |
