Automatic Liquid Filling Machine

Jih Cheng
https://www.chinyi.com/web/image/product.template/37/image_1920?unique=6cd5bc9

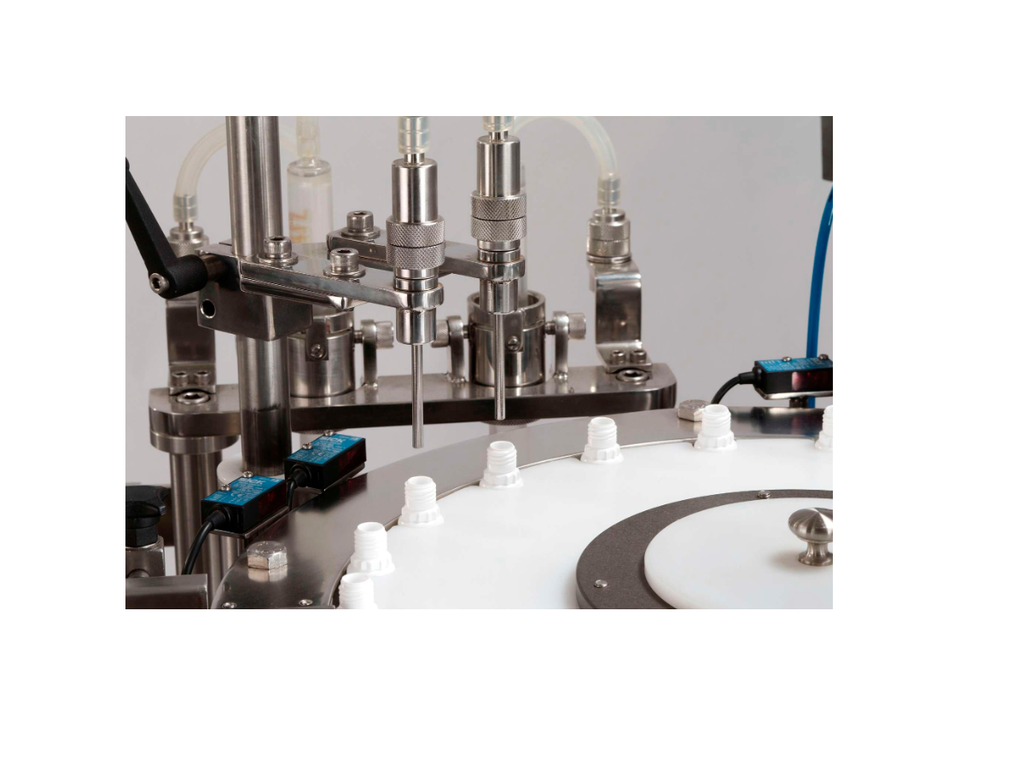

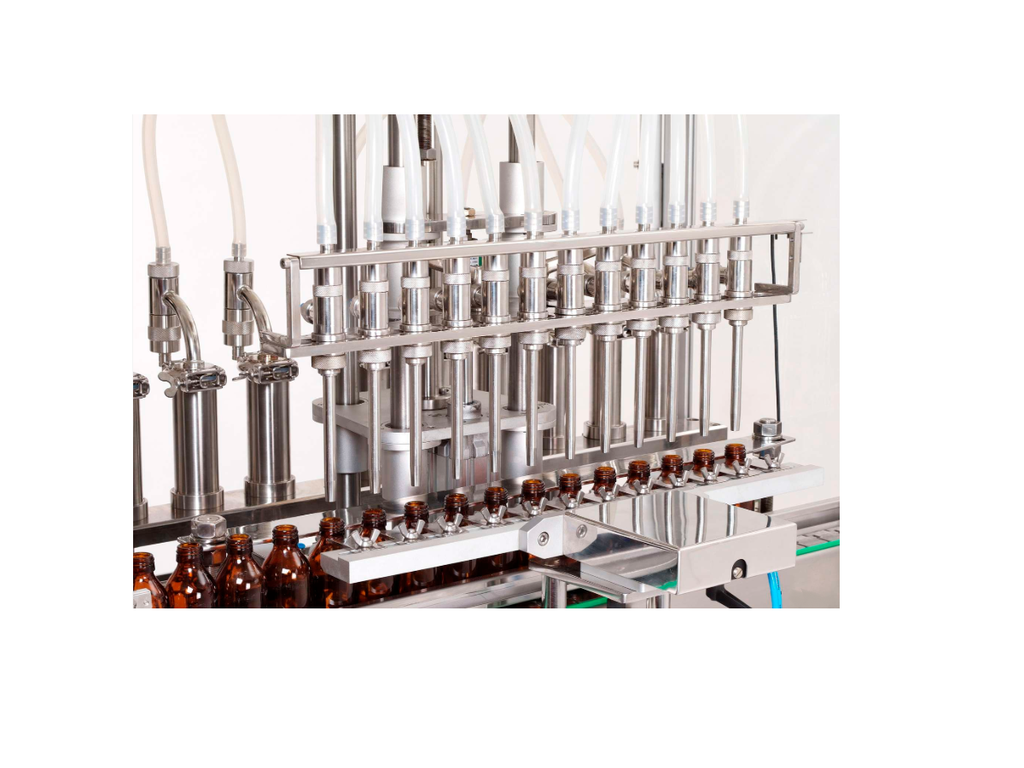

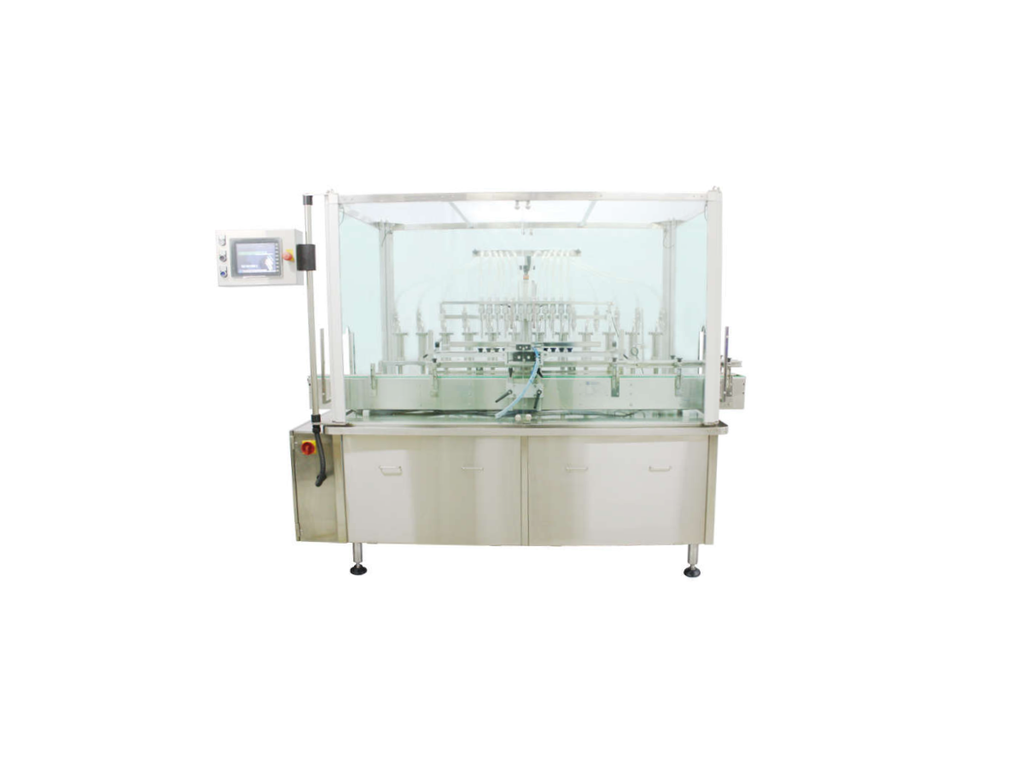

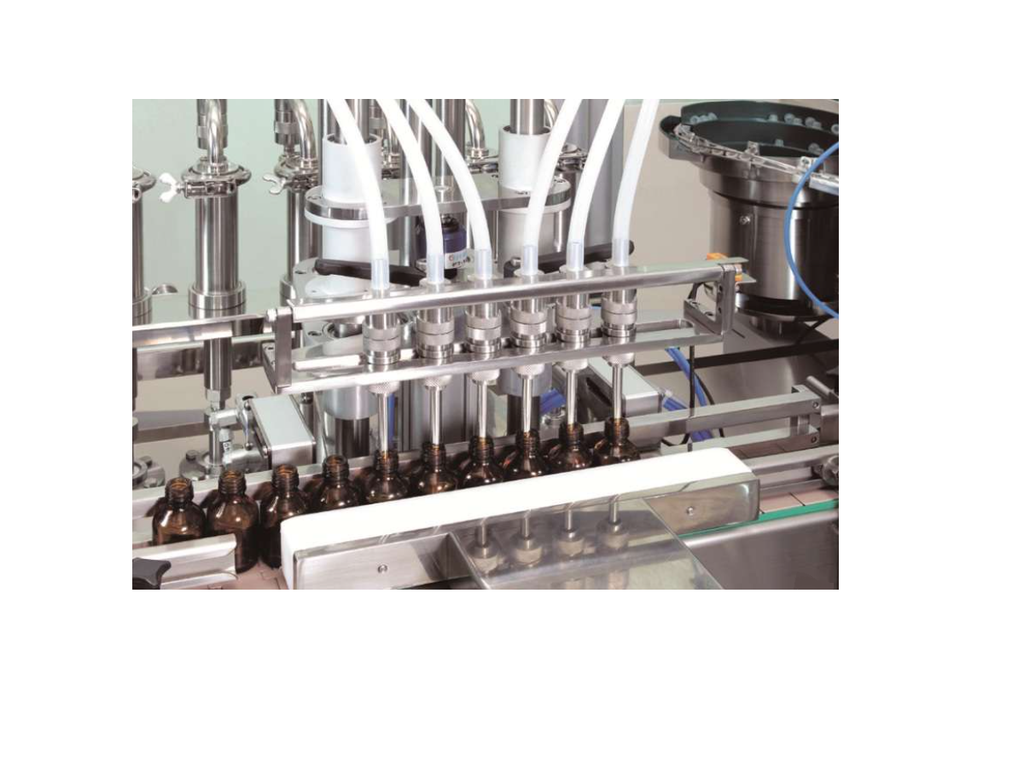

This is an automatic liquid filling machine of volumetric filling type, applicable in liquid of low viscosity. It is a straight-line system using pneumatic cylinders and other sensors with PLC control for bottle positioning and liquid filling without spillage and meeting cGMP rules. It is easy in operation, short change-over time for different containers, thus very economical for one-machine-multiple application operation. The automatic filling operation includes applications in chemical, pharmaceutical, food, cosmetic and detergent industries.

Features:

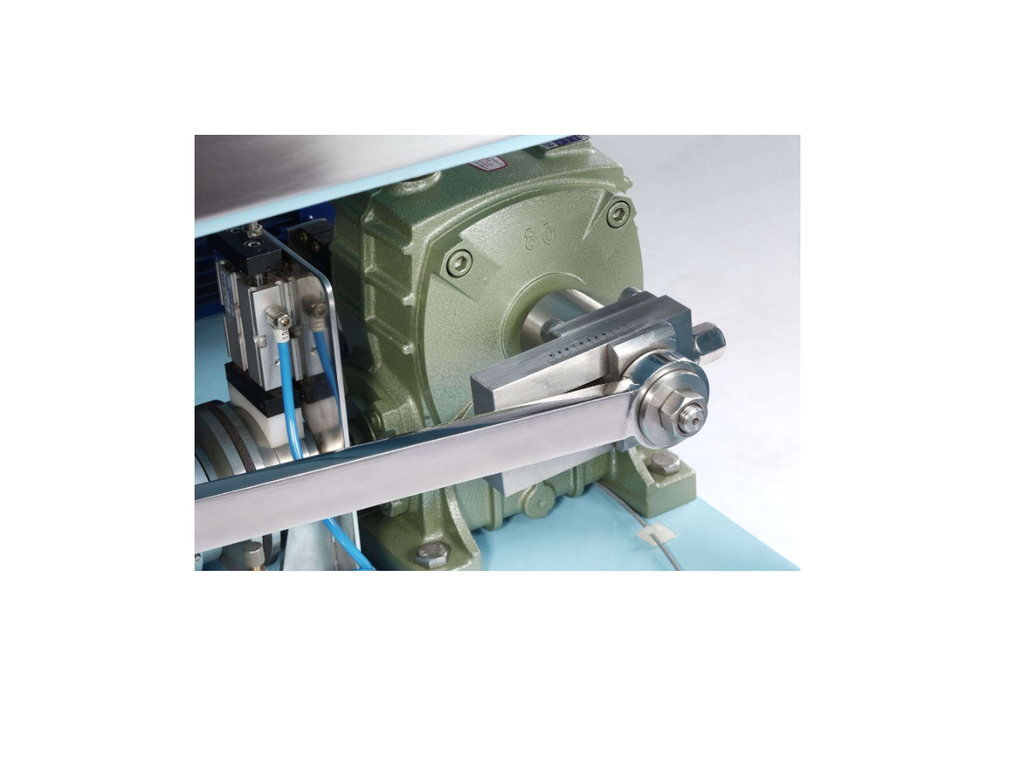

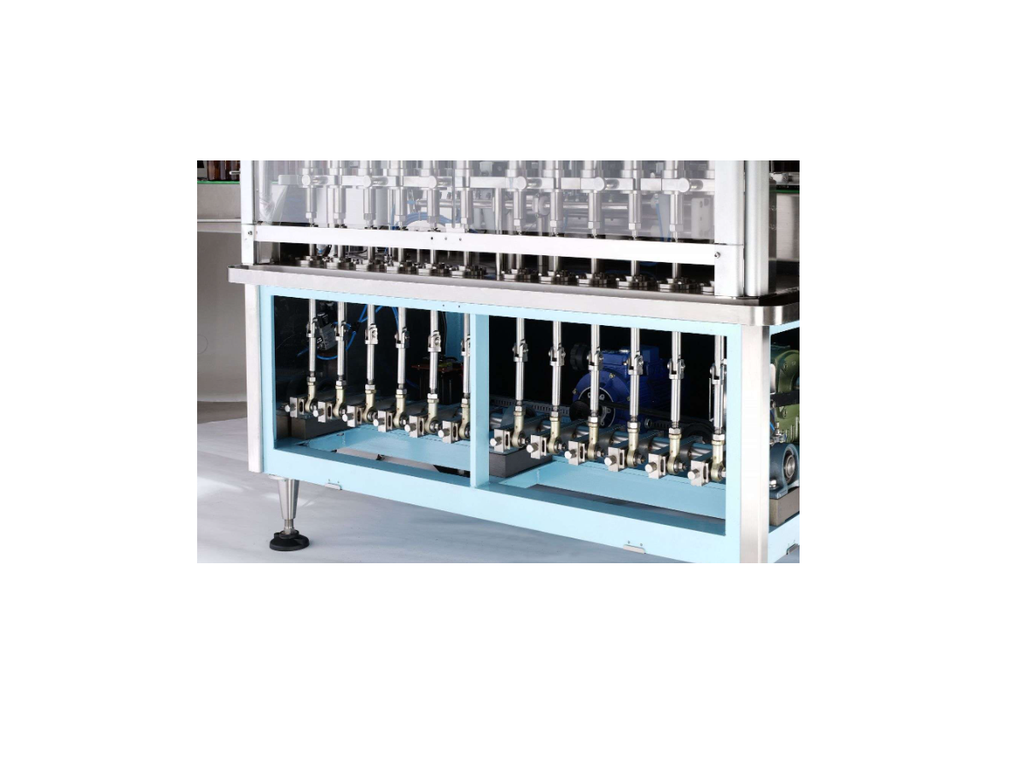

  • Adopting individually controlled cylinder for fast and accurate volume adjustment.
  • Liquid contact parts such as cylinder, filling nozzle made of SS#316 stainless steel.
  • Conveyer and machine top surface made of stainless steel for durability and ease in cleaning.
  • Bottle feeding and positioning are air-controlled.
  • Freedom in motor speed adjustment by adopting stepless speed controller.
  • Suitable for independent operation, also possible for connection with line operation.
  • The automatic cap sealing machine.

    This combination does not exist.

    Technical Data

    Specification⁣​
    Model No.
    		 JC-FS-8 JC-FM-8 JC-FML-8 JC-FL-8 JC-FXL-8
    Filling Capacity (g)
    		5-3015-10030-15060-300 200-500
    Speed (bpm)
    		70-9050-7050-7040-6035-50
    Power source (VAC)
    		 220V / 380V ​⁣​50Hz /60 Hz ​⁣​sing phase / 3 phase
    Power consumption
    		1.01.01.01.01.5
    Air consumption
    		4-6 kgs x 30 Liter4-6 kgs x 30 Liter4-6 kgs x 30 Liter4-6 kgs x 30 Liter4-6 kgs x 30 Liter
    Machine weight (kg)
    		550580620680750
    Specification⁣​
    Model No.
    		 JC-FML-12 JC-FL-12 JC-FXL-12 JC-FML-16 JC-FL-16
    Filling Capacity (g)
    		30-15060-300200-50030-150 60-300
    Speed (bpm)
    		90-11080-10050-60110-13090-110
    Power source (VAC)
    		220V / 380V ​⁣​50Hz /60 Hz ​⁣​sing phase / 3 phase
    Power consumption
    		1.51.52.252.252.25
    Air consumption
    		4-6 kgs x 45 Liter4-6 kgs x 45 Liter4-6 kgs x 45 Liter4-6 kgs x 72 Liter4-6 kgs x 72 Liter
    Machine weight (kg)
    		700800910950980
