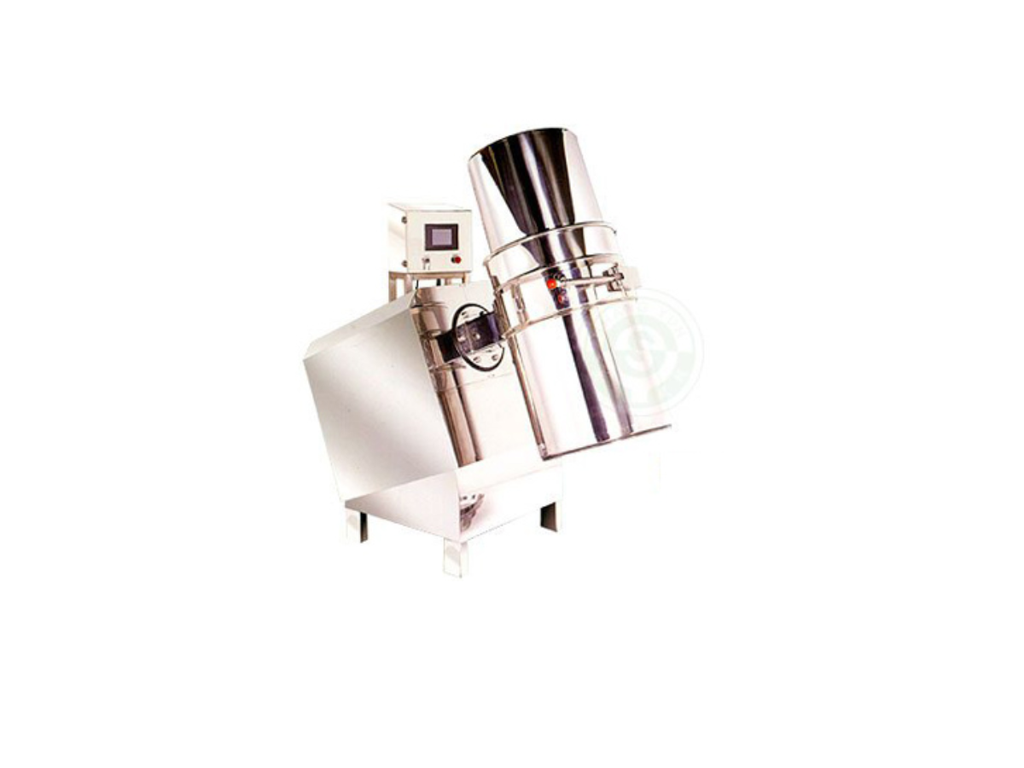

Multi-Blended Machine
SY-RBM
Due to the Multi-blend machine has function of multi-direction action, there are no centrifugal force, specific gravity segregation, delaminated and gathered situation. There are more mix site so the mix efficiency is good. The material mixed degree is better than general mixer; trough has polish treatment of GMP standard, Inner trough have no dead space, discharge smoothly, no remained material in trough and easy to clean it; Material mix in seal container, so it will not pollute the working environment or mixed material. If it need to mix micro quantity or more precise mix. it can equip baffle that can shorten the mix time.
Features:
- This machine achieves uniform mixing through rotation without centrifugal force for homogeneous mixing.

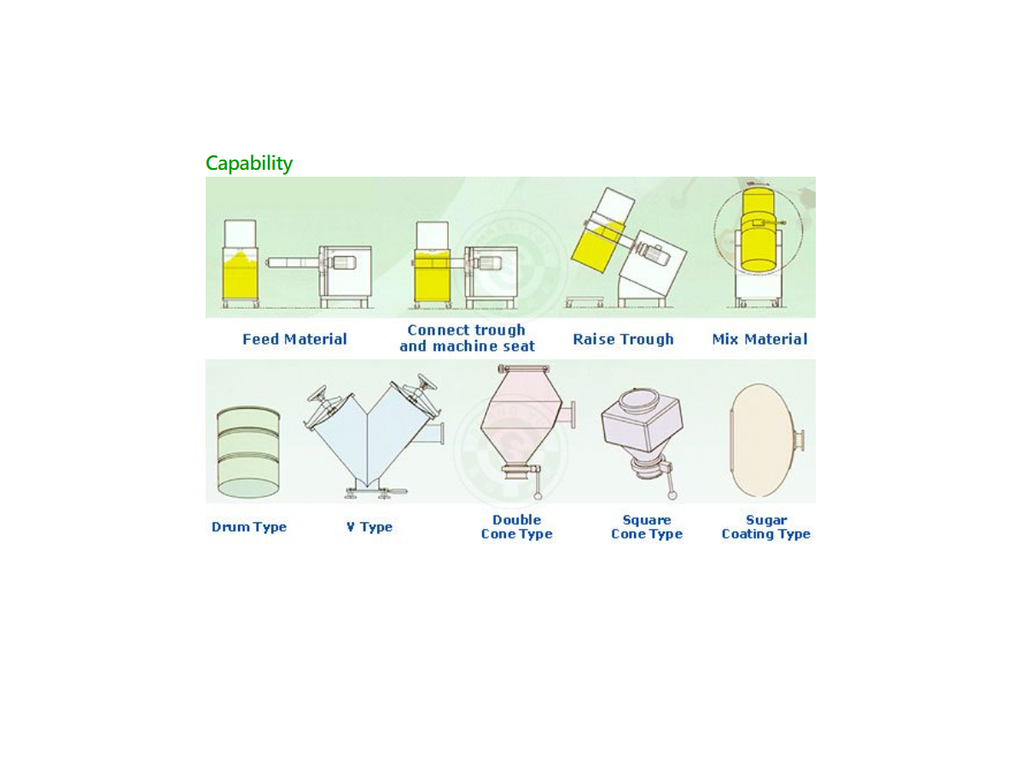

- It can be used with various mixing tanks (cylindrical, V-shaped, double-cone, square-cone, octagonal, etc.) to provide diverse mixing effects.

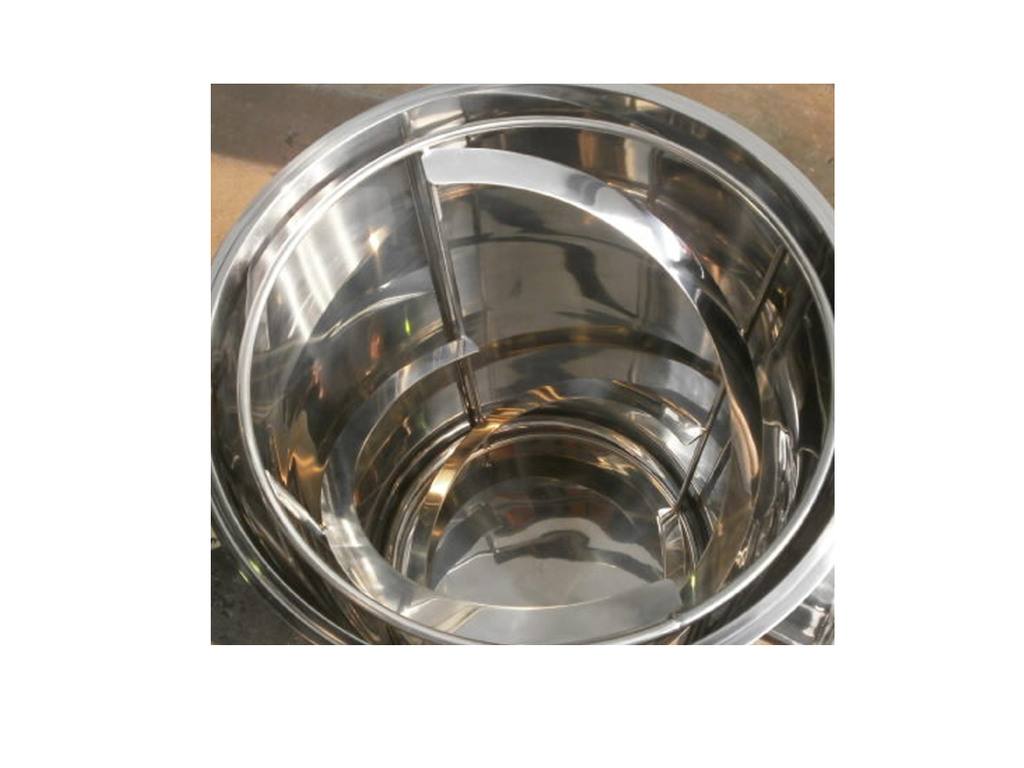

- The tank design eliminates dead corners, making discharge and cleaning easier.

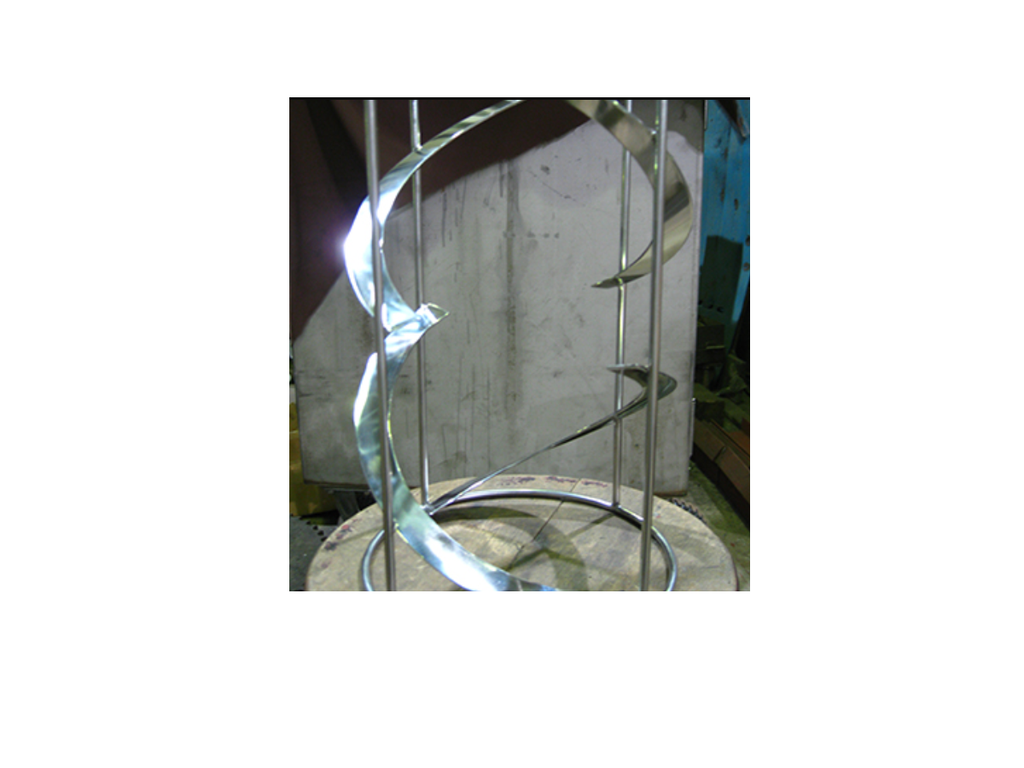

- The addition of movable baffles allows for mixing smaller, more concentrated materials.
- The quick movement of the mixing tank trolley shortens feeding and discharging times.
- Automatic sensor guardrails, covers, and infrared protection enhance operational safety.
Technical Data

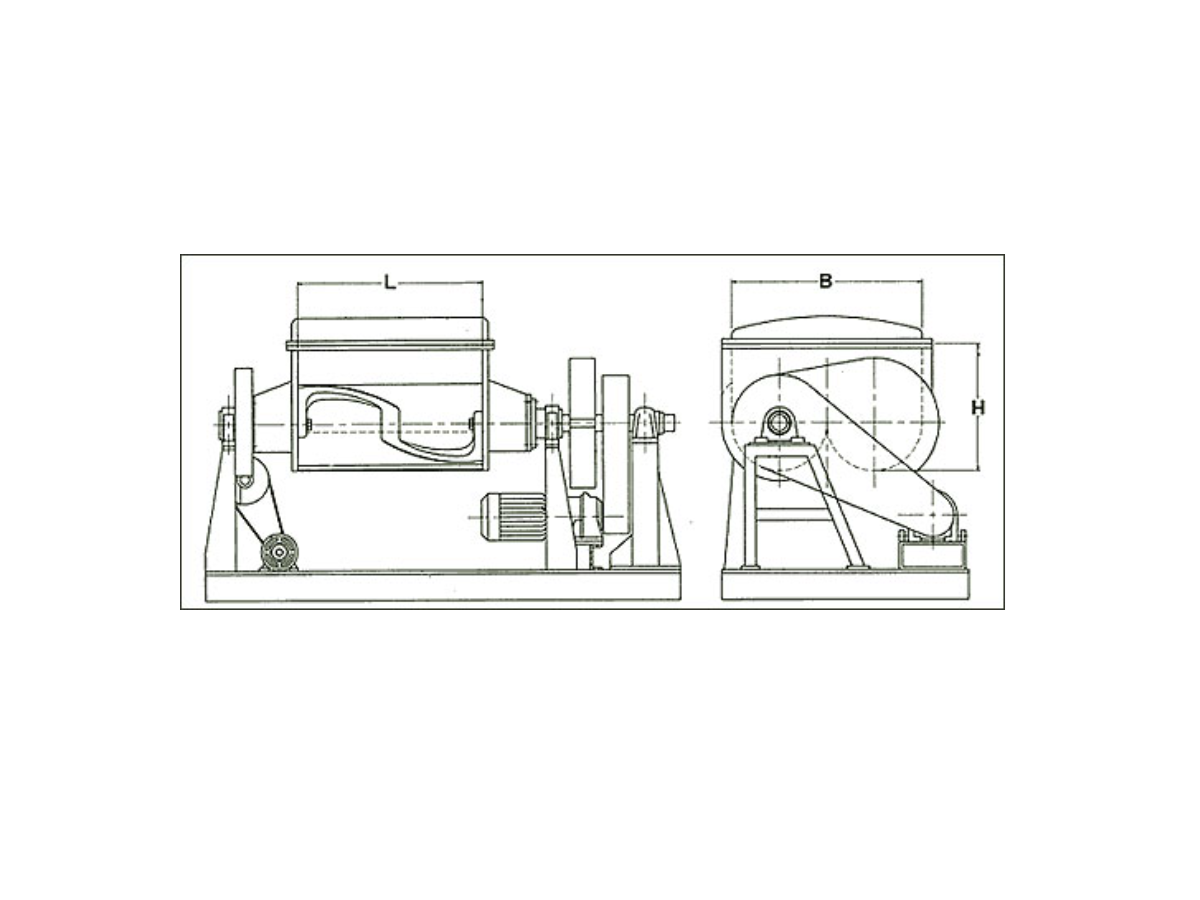

| Model | Full Volume (L) | Operation Volume (kg) | Rotary Motor | Outside Dimension LxWxH (mm) | |
| HP | R.P.M | ||||
| SY-RBM-15L |
15 | 10 | 1 | 60 | 950 × 600 × 1130 |
| SY-RBM-120L | 120 | 80 | 2 | 50 |
1595 × 600 × 1485 |
| SY-RBM-200L | 200 | 100 | 3 | 30 |
1990 × 1425 × 1950
|
| SY-RBM-300L | 300 | 100 | 3 | 30 |
2840 × 1890 × 1950 |
| SY-RBM-600L | 600 | 300 | 5 | 60 |
3070 × 2210 × 2445 |
