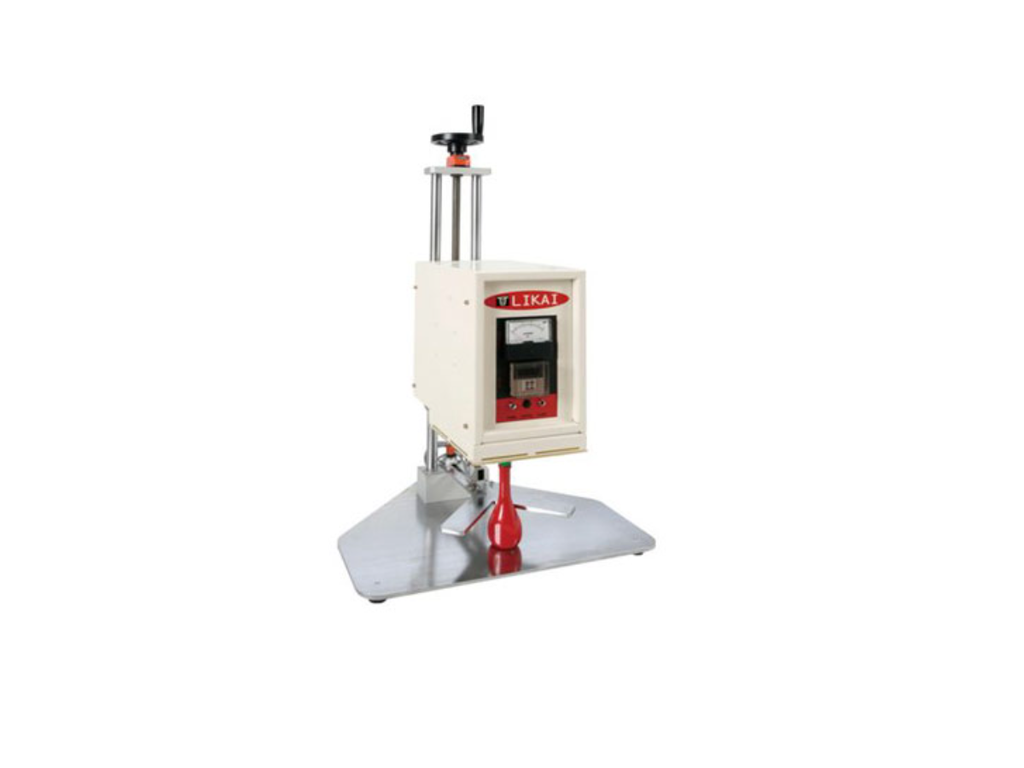

Semi-automatic induction aluminum foil sealing machine

LK-700
https://www.chinyi.com/web/image/product.template/27/image_1920?unique=e71c1ca

Main machine can be transmissible without any machine, heat sealing, launcher. It does not contact with aluminum foil and cap directly. Non-contacted sealing method responses to sealing coil by tunnel way. By this technology, the aluminum cap foil is coated with an inert film on one side. The film touches on the bottle edge, under the pressure that cap gives, when the aluminum foil heated by the induction coil, the film reaches the melting point soon and becomes as an adhesive to bond the cap foil and bottle.

Features:

  • Avoid contents outflow.
  • Isolate the contents inside to touch air can avoid quality direction.
  • Safe sealing, promote product image, prevent prevent destory on purpose, make sure content in container and extend quality day.
  • Power : 9-phase control.
  • Timer device.
  • Slim design saves space.
  • With electric sensor design (Can also join the pedal switch) and a warning alarm notifies while heating, which are easy to access for operation and small production.
  • Unique heat dissipation design rarely needs servicing.
  • With Hoisting stopwatch (altimeter) and wind up mounting, the operator can adjust the sealing head easily.
  • So that it is suitable for any size of containers.
  • Protection of electric circuit in case of overpotential, overcurrent and abnormal temperature.
  • With a warning alarm. Loud audible signal to alert the user problems.

Application:
1. Drugs: powder, liquid, capsule, table etc.
2. Cosmetics: moisturizing lotion, wa and uvb protection lotion.
3. Beverages: mineral water, milk, juice, yoghurt, flavored drink.
4. Chemicals: lubricant, conditioner, cleaner.
5. Foods: coffee bean , jelly, fish food.
6. Insecticides: liquid, powder, bottle.

    This combination does not exist.

    Technical Data

    Specification
    Voltage
    AC 220V +/- 10% 50/60HZAC 110V +/- 10% 50/60HZ;
    Max. Output power
    500W
    Operating Frequency
    20-26 KHZ
     The weight of main controller
    11.80 kgs
    Dimension
    7.5cm (L) x 21.5cm (W) x 25cm (H)
    The Weight of the pedestal
    10 kgs
    Dimensions of the pedestal
    46cm (L) x 37cm (W) x 68cm (H)
    Sealing range
    20-67mm (Others sealing range are available on request)
