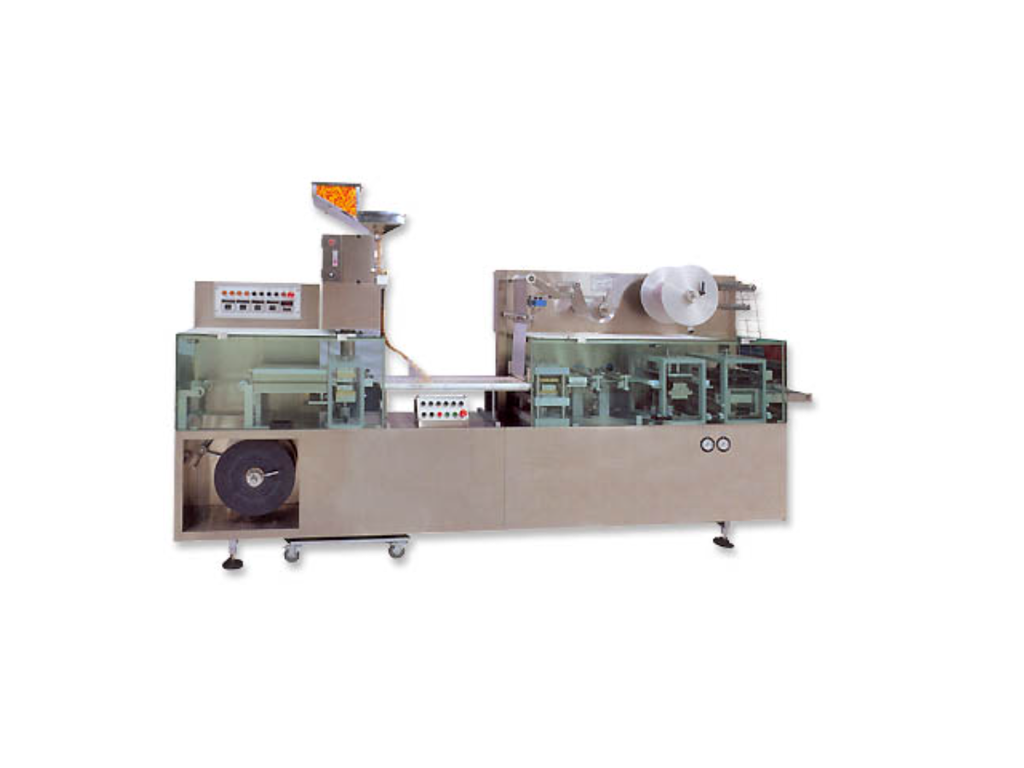

4 in 1 Blister Packaging Machine (Alu-Alu)

Features:

• Movement along a linear path supports diverse blister designs, reducing adjusting time and costs.

• Simple operation & easy molds interchange.
• Various choices of packing materials.
• Commonality of format sets.
• Interchangeable station for perforation & slitter lines.

• Lower consumption of spare parts.
• Lower risk of leakage problem.

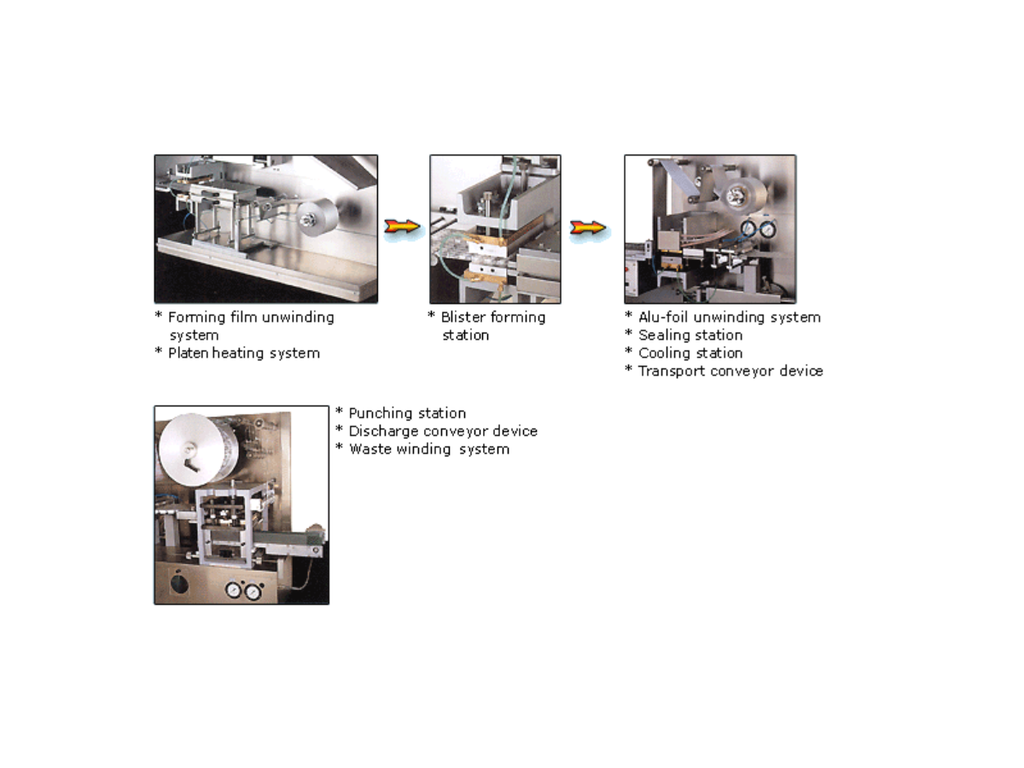

Procedure:

1. Forming film of reel support with automatic unwinding system.
2. Plate heating system. Lift-off on machine stop.
3. Compressed air forming station.
4. Filling device (Automatic or manual).
5. Cover foil of reel support with automatic unwinding system.

6. Guide rails.
7. Sealing station.
8. Cooling station.
9. Punching station.
10. Waste winding unit.

Advantages of the platen sealing system

• Sufficient process time.
• Constant and relatively low sealing temperature over the full sealing platen.

• Low energy cost.
• Flexibility to seal a range of lid materials.
• Proportional heat control with only +/- 5°C variation.
• Uniform pressure distribution over the full platen surface.
• Heat transfer to product is avoided.
• Absorption of sealing load within the station.
• Separation of indexing and sealing functions.


Optional Accessories

• Slitter station or perforation station.

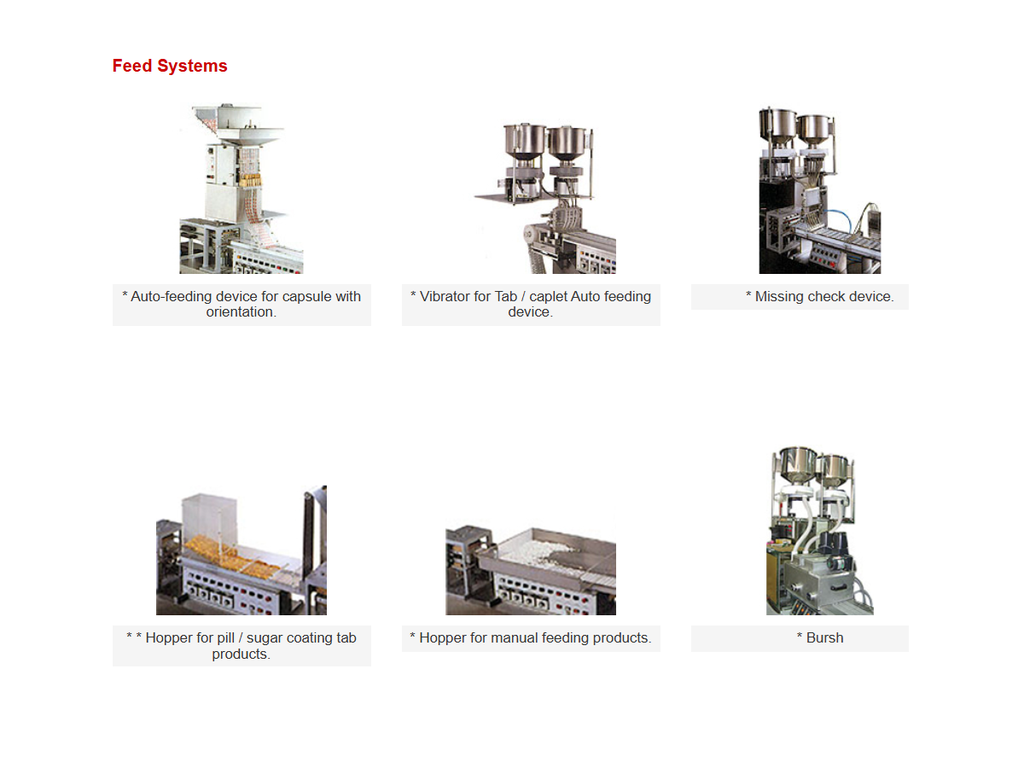

• Auto feeding device for capsule with orientation.
• Vibrator auto feeding device for Tablet/Caplet.
• Discharge conveyor device.
• Safety guard.
• Missing check.
• Printed mark controller.
