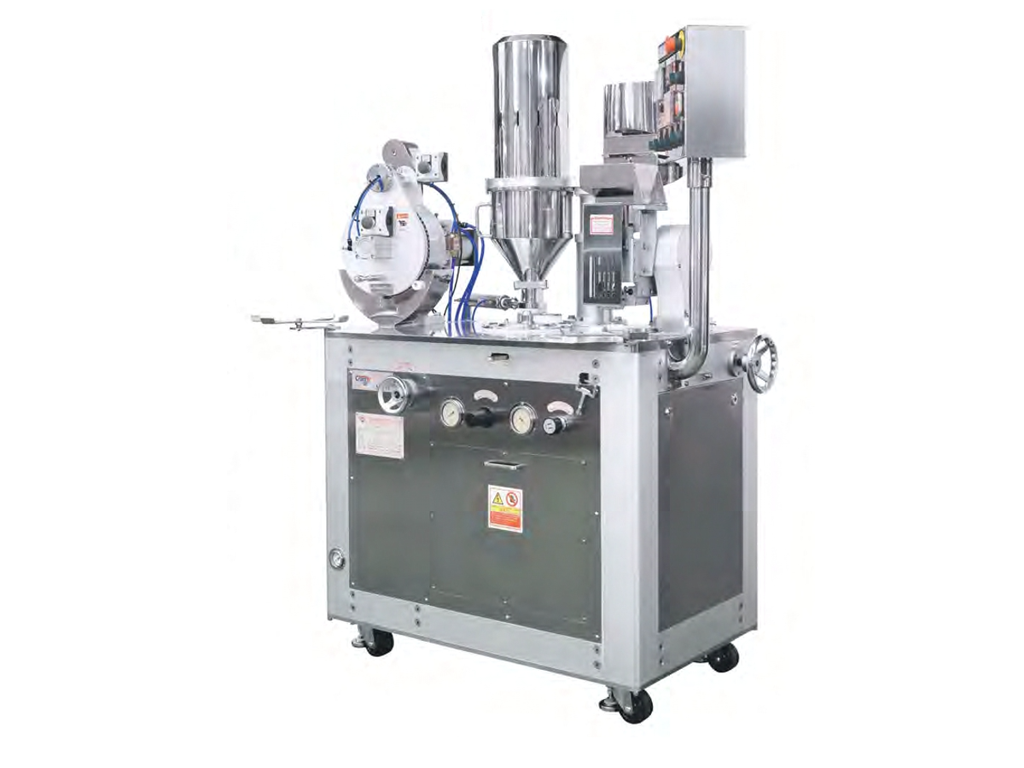

Semi-Automatic Capsule Filling Machine
SCF-10
Machine identity:
- All power resources output are separate. Control at the same time or separately. Easy to operate and higher effect.
- The powder feeding quantity can be micro adjusted. The R.P.M. of the capsule plate will be shown on the digital electronic indicator.
- After all the empty capsules have been rightly rectified and filled up, the mechanism will stop automatically with a ring counter.
- Additional manual control handle has been installed for easy and convenient for trial run.
- The combination structural and mechanization driving system make easy maintenance and less trouble possibility.
- Surface plate, frame set and parts are meet cGMP and PIC/S requirement.
- Machine electronic controller system CE certificate.
Technical Data
| Specification |
|
|
Model No. |
ACF-10 |
|
Capacity (caps/hr)
| 12,000-16,000 pcs/hr |
|
Capsule Size
| #00, #0, #1, #2, #3,#4, #5 |
| Powder Feeding Motor | 0.4kw 1/2 HP |
| Fill Turntable | 0.75kw 1 HP |
| Capsule Feeding Motor | 0.2kw 1/4 HP |
|
Vacuum Pump
| 0.75kw 1 HP |
| Net Weight | 540 KGs |
| Cross Weight | 650 KGs |
|
Dimension
| 1250x800x1560 mm (LxWxH) |
|
Export Packing
| 2100x1200x1880 mm (LxWxH) |
