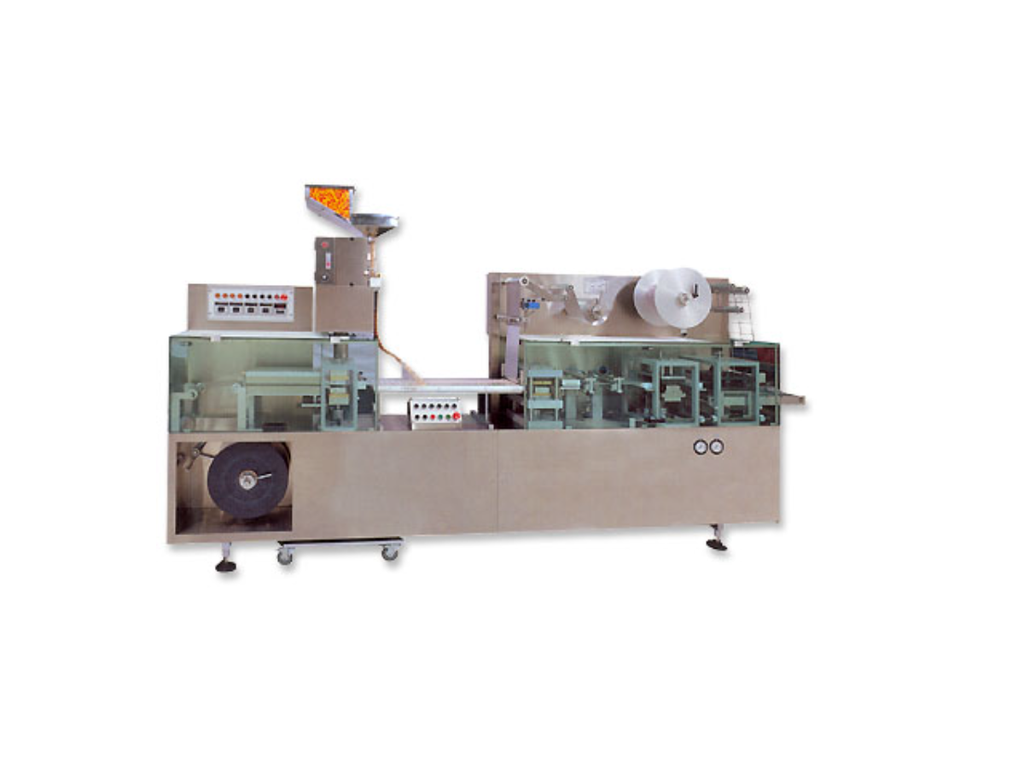

4 in 1 Blister Packaging Machine
DK-PS 20A/30A/40A
Features:
- Movement along a linear path supports diverse blister designs, reducing adjusting time and costs.
- Simple operation & easy molds interchange.
- Various choices of packing materials.
- Commonality of format sets.

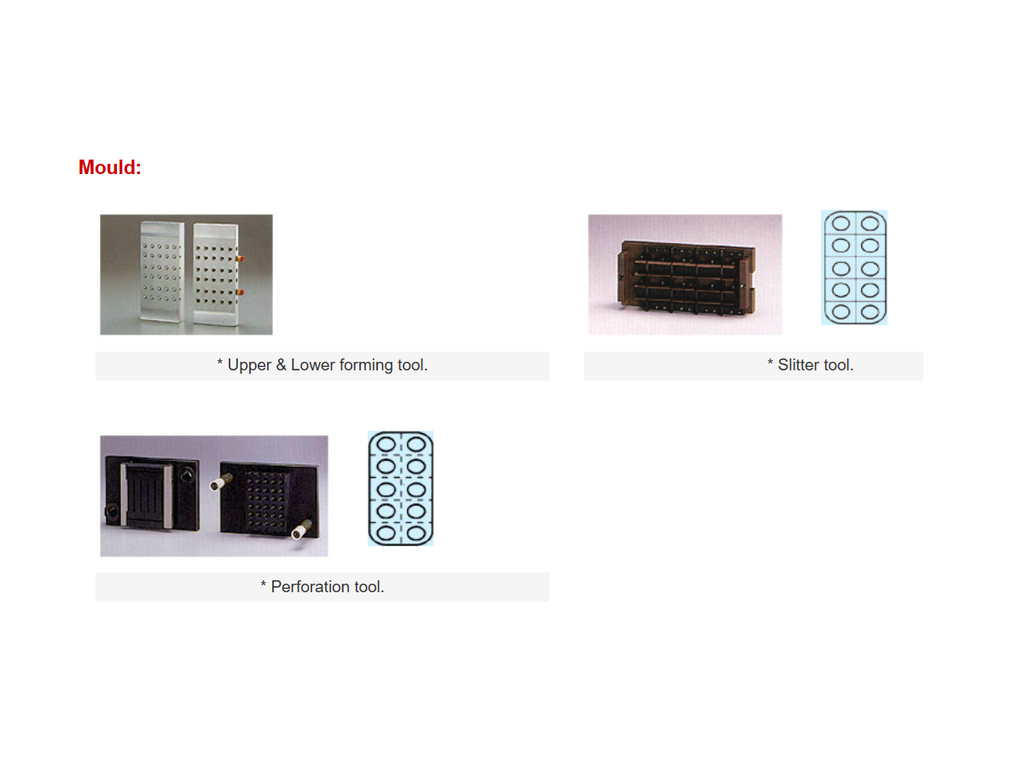

- Interchangeable station for perforation & slitter lines.
- Lower consumption of spare parts.
- Lower risk of leakage problem.

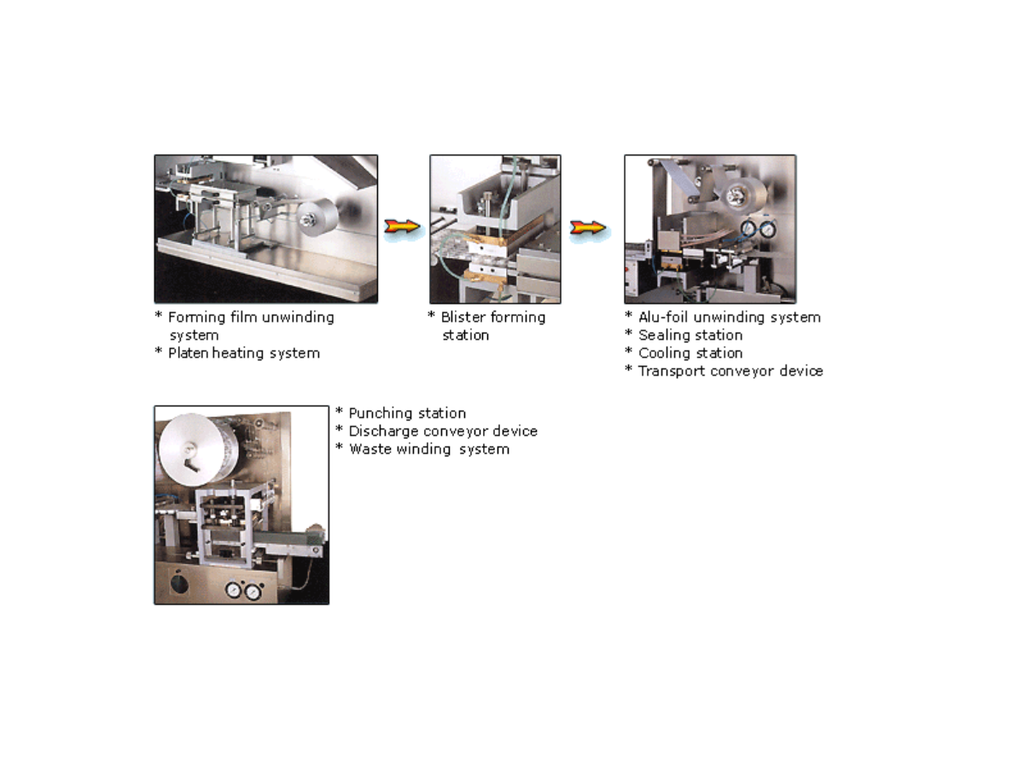

Procedure:
- Forming film of reel support with automatic unwinding system.
- Plate heating system. Lift-off on machine stop.
- Compressed air forming station.
- Filling device (Automatic or manual).
- Cover foil of reel support with automatic unwinding system.
- Guide rails.
- Sealing station.
- Cooling station.
- Punching station.
- Waste winding unit.
Advantages of the platen sealing system
- Sufficient process time.
- Constant and relatively low sealing temperature over the full sealing platen.
- Low energy cost.
- Flexibility to seal a range of lid materials.
- Proportional heat control with only +/- 5°C variation.
- Uniform pressure distribution over the full platen surface.
- Heat transfer to product is avoided.
- Absorption of sealing load within the station.
- Separation of indexing and sealing functions.
Optional Accessories
- Slitter station or perforation station.

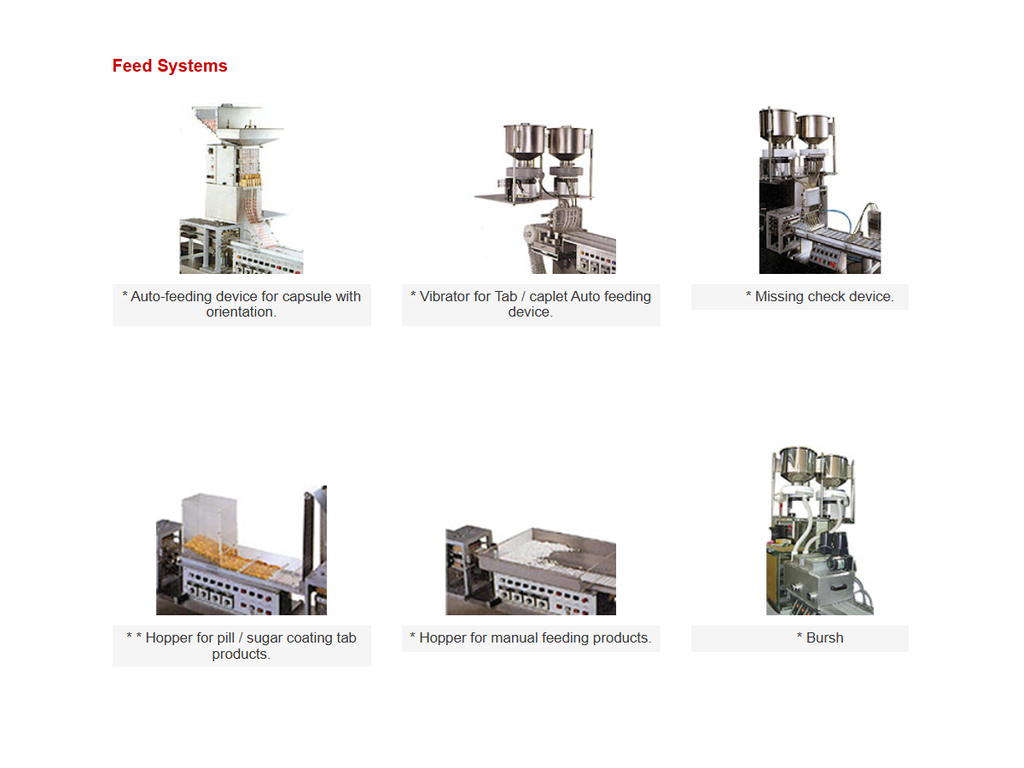

- Auto feeding device for capsule with orientation.
- Vibrator auto feeding device for Tablet/Caplet.
- Discharge conveyor device.
- Safety guard.
- Missing check.
- Printed mark controller.
Application
- Pharmaceutical : Tablets, Capsule, Ampoules, Vials etc.
Technical Data
| Specification | ||||||
| Model No. | DK-PS 20A | DK-PS 30A | DK-PS 40A | |||
|
Formed area available (max mm) | 80(W)x120(L) | 80(W)x150(L) | 100(W)x190(L) | |||
| Form film thickness (mm) | 250-350 micron | 250-350 micron | 250-350 micron | |||
| Lid foil width (max mm) | 124 | 154 | 195 | |||
|
Forming depth (mm) | 13 (or as require) | 13 (or as require) | 13 (or as require) | |||
|
Reel diameter Film (max mm) foil (max mm) core (mm) | 400 240 70-76 | 400 240 70-76 | 400 240 70-76 | |||
|
Conveying length (max mm) | 112 | 112 | 112 | | ||
|
Capacity / Strokes (max) | 50 | 50 |
50 | |||
| Electrical Connection | 220/380/440 V 50Hz or 60 Hz | 220/380/440 V 50Hz or 60 Hz |
220/380/440 V 50Hz or 60 Hz
| |||
| Compressed air Consumption | 36.9-52.4 CFM at 7Kg/cm² G1045-1484 L/Min |
36.9-52.4 CFM at 7Kg/cm² G1045-1484 L/Min |
52.4-82.4 CFM at 7Kg/cm² G1484-2334 L/Min | |||
|
Cooling water Consumption | 0.06m³-0.1m³ / Hr15°C-20°C | 0.06m³-0.1m³ / Hr15°C-20°C |
0.18m³-0.3m³ / Hr15°C-20°C
| |||
|
Floor space (approx mm)
|
3260(L)x800(W)x1550(H)
| 3260(L)x800(W)x1550(H) | 3260(L)x800(W)x1550(H) | |||
| Main Motor, Heater | 1/4HP, 3-4W | 1/4HP, 4-6W | 1/4HP, 5-7W | |||
| Shipping Data (approx) G.W. Kg N.W. Kg Cu-Ft | 1,000 700 190 | 1,100 800 200 | 1,200 900 200 | |||
| *The manufacturer reserves the right to modify the design, specification, etc., to improve the performance of the machine without notice. *All the specification shown are just for reference. | ||||||
