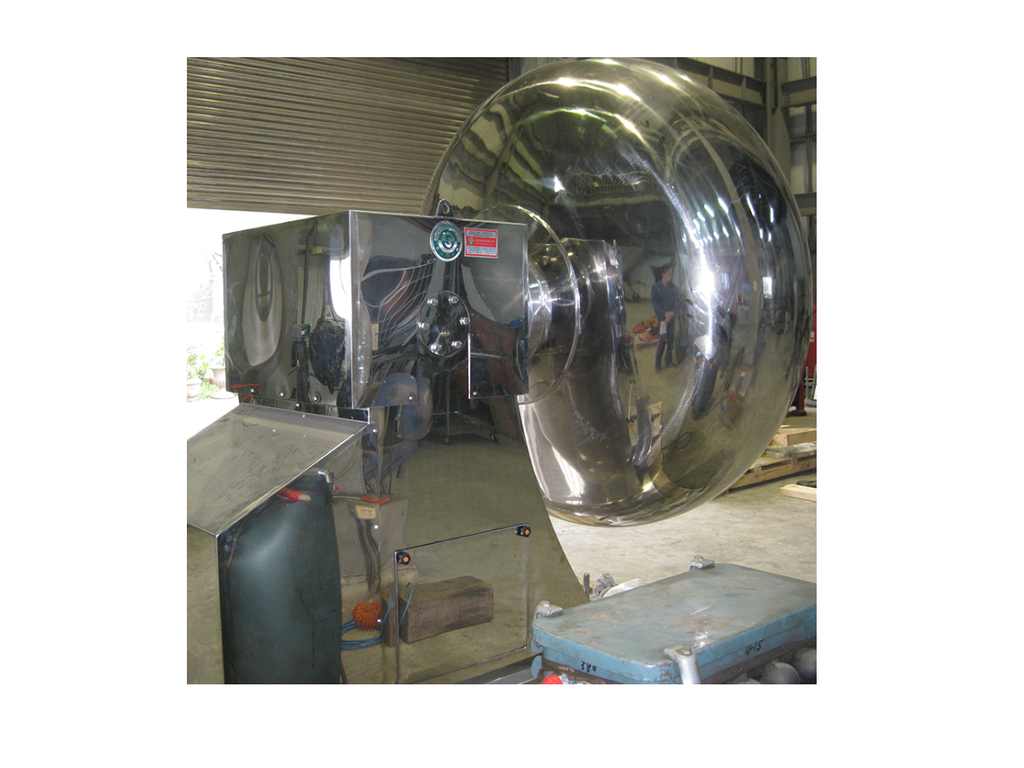

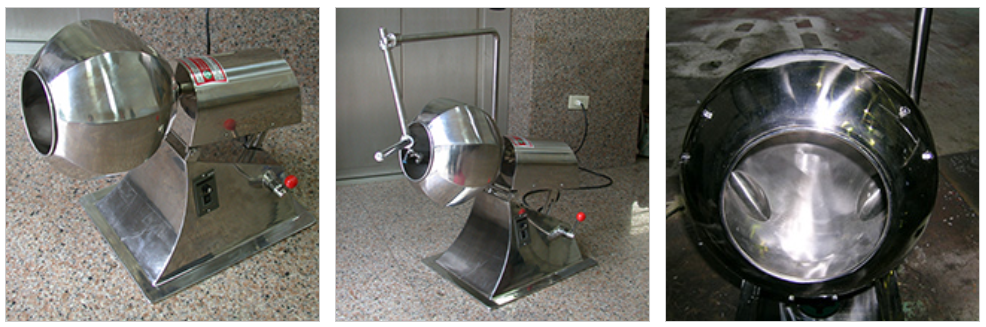

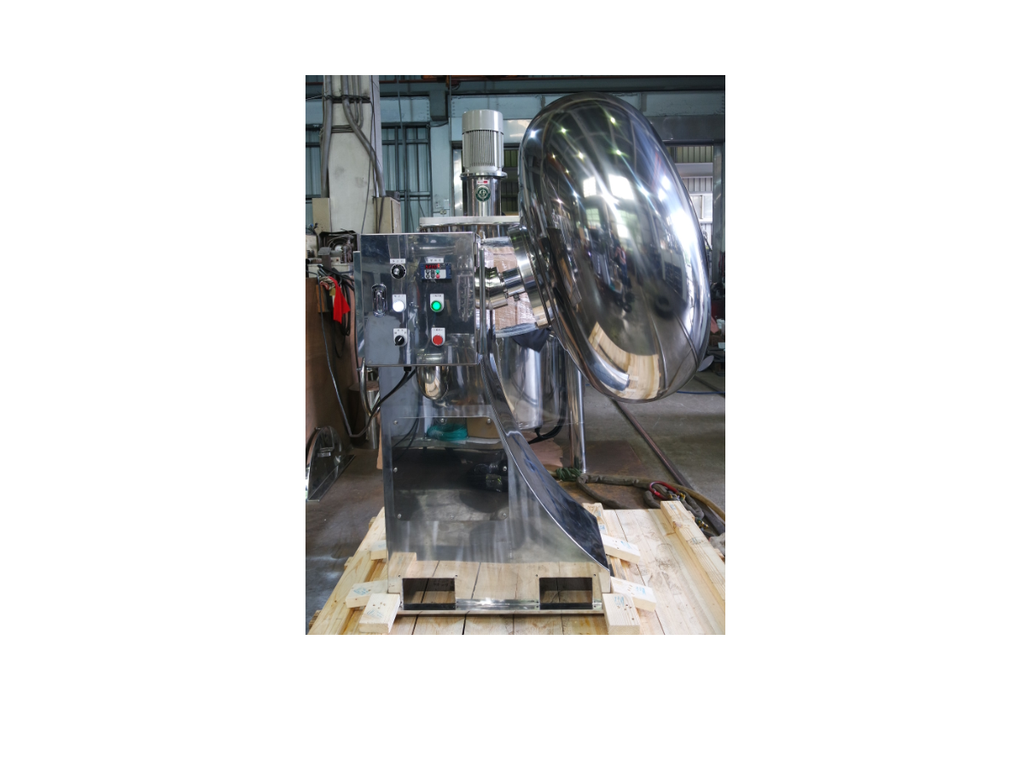

Sugar Coating Machine
SY-CP

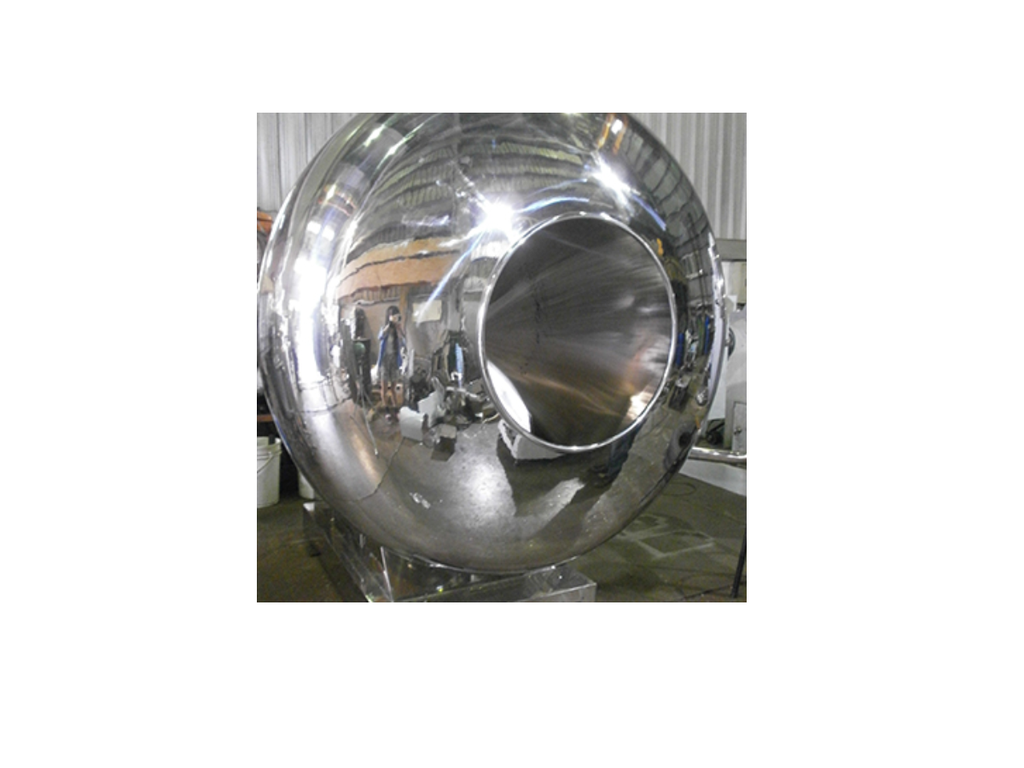

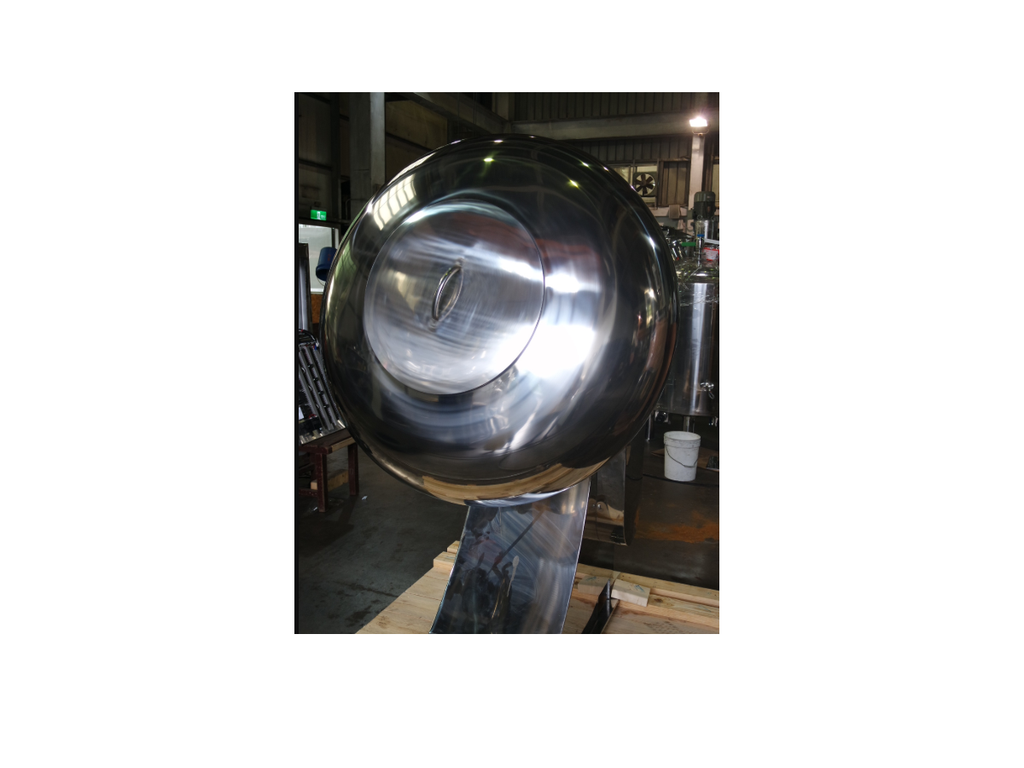

The inside of the coating machine's drum has varying surfaces. As the drum rotates, the granules slowly tumble and roll within it, preventing them from breaking or adhering to the drum walls. During the mixing process, the coating drum can be adjusted manually or automatically to the required angle. When the spray nozzle injects the raw material into the drum, the granules achieve a uniform and glossy coating.
Features:
- The concave-convex surface and baffle blade design of the inner barrel ensure uniform granule coloring and a bright appearance.
- Fast coating speed improves production efficiency.
- Simple operation and easy maintenance.
- Small footprint, quiet operation, and high safety.
- No dead corners or sharp edges inside the barrel, easy to clean, and no cross-contamination issues.
Technical Data
| Model | Operation Volume (kg) | Main Motor | Outside Dimension LxWxH (mm) | |
| HP | R.P.M | |||
| SY-CP-20” |
10 | 0.5 | 60 | 970 × 600 × 1075 |
| SY-CP-30” | 20 | 2 | 40 |
1150 × 850 × 1358 |
| SY-CP-36” | 50 | 2 | 30 |
1200 × 915 × 1420
|
| SY-CP-40” | 75 | 2 | 24 |
1600 × 975 × 1605 |
| SY-CP-60” | 250 | 7.5 | 30 | 2155 × 2000 × 2265 |
| SY-CP-70” | 350 | 10 | 30 | 2160 × 2295 × 2385 |
